How to setup Content Delivery API with Entra ID (formerly Azure AD) and OpenIDConnect

  • Updated

<1> Setup Entra ID for CMS

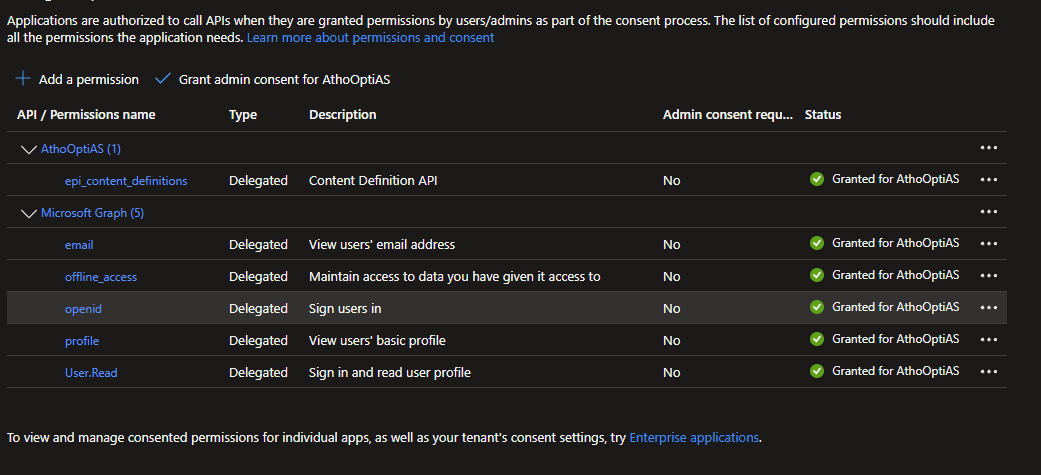

Following the steps in the docs below to config Entra ID (formerly Azure AD) with CMS
https://support.optimizely.com/hc/en-us/articles/20767067525773



<2> Integrated CD with Entra ID into CMS site

Step 1: Install JwtBearer and content delivery API package:

Note: You can add the package directly to “.csproj” file to install like this
 <PackageReference Include="Microsoft.AspNetCore.Authentication.JwtBearer" Version="6.0.23" />
 <PackageReference Include="EPiServer.ContentDeliveryApi.Cms" Version="3.9.0" />
 <PackageReference Include="EPiServer.ContentDefinitionsApi" Version="3.9.0" />
 <PackageReference Include="EPiServer.ContentManagementApi" Version="3.9.0" />

Step 2: Update Startup.cs file

// AAD Auth info
            var clientId = _configuration["Authentication:AzureClientID"];
            var clientSecret = "YOUR CLIENT SECRET ";
            var callbackPath = "/signin-oidc";
            var azureAuthority = _configuration["Authentication:azureAuthority"];
            var cookieSchema = "azure-cookie";
            var challengeSchema = "azure";
            var oidcConfig = new ConfigurationManager<OpenIdConnectConfiguration>($"{azureAuthority}/.well-known/openid-configuration", new OpenIdConnectConfigurationRetriever()).GetConfigurationAsync().Result;

// Authentication Config
            services
              .AddAuthentication(options =>
              {
                  options.DefaultAuthenticateScheme = cookieSchema;
                  options.DefaultChallengeScheme = challengeSchema;
              })
              .AddJwtBearer(JwtBearerDefaults.AuthenticationScheme,
                  options =>
                  {
                      options.TokenValidationParameters = new TokenValidationParameters
                      {
                          ValidIssuer = azureAuthority,
                          ValidateIssuer = true,
                          ValidAudience = clientId,
                          ValidateAudience = true,
                          ValidateLifetime = true,
                          IssuerSigningKeys = oidcConfig.SigningKeys,
                          ValidateIssuerSigningKey = true
                      };
                  })
              .AddCookie(cookieSchema, options =>
              {
                  //same as last docs~~~
              })

              .AddOpenIdConnect(challengeSchema, options =>
              {
                //same as last docs~~~
              })

// Add content delivery config

            services.AddContentDeliveryApi(JwtBearerDefaults.AuthenticationScheme)
                .WithFriendlyUrl()
                .WithSiteBasedCors();

            services.AddContentDefinitionsApi(c =>
            {
                c.DisableScopeValidation = true;
            });

             services.AddContentManagementApi(c =>
            {
                c.DisableScopeValidation = true;
            });



Step 3: Try to test the CD API

  1. Make sure you can log in to the CMS using the Entra ID account from Section 1

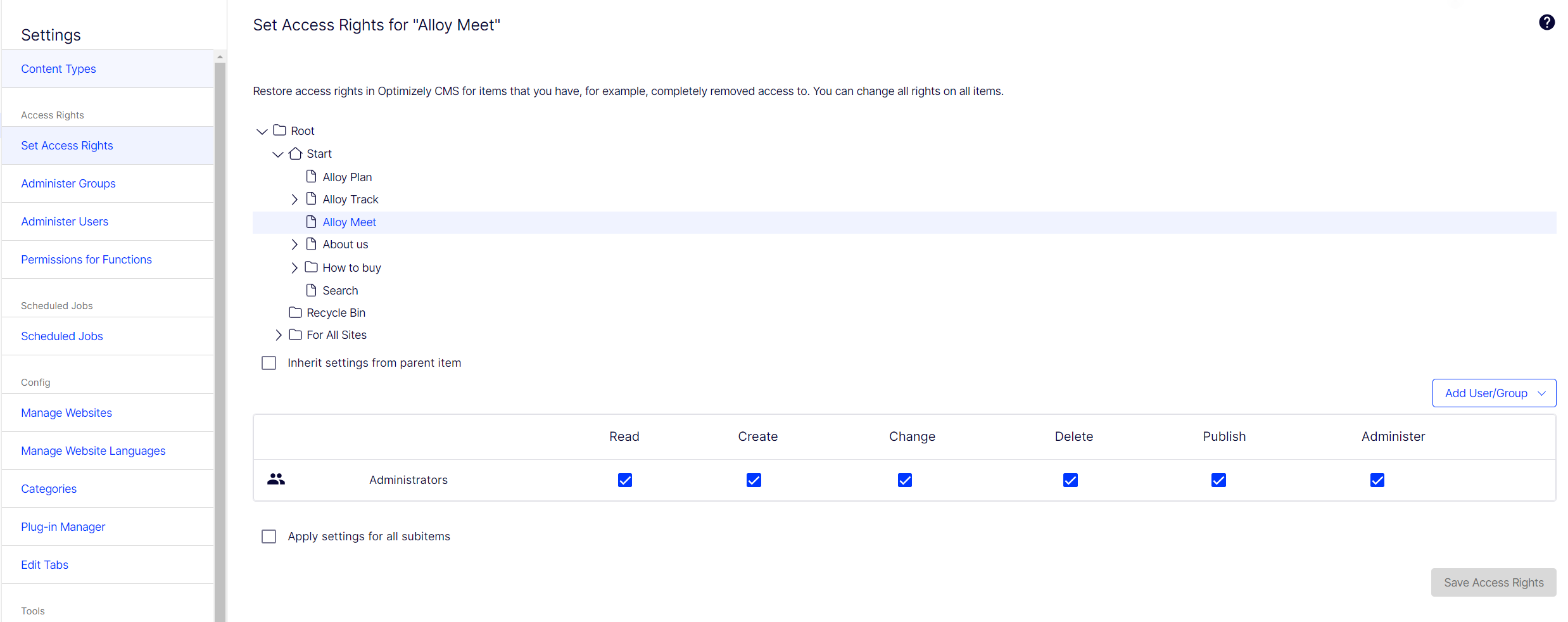

  2. After accessing Admin mode, set up a page that is not visible to Everyone but Administrators only

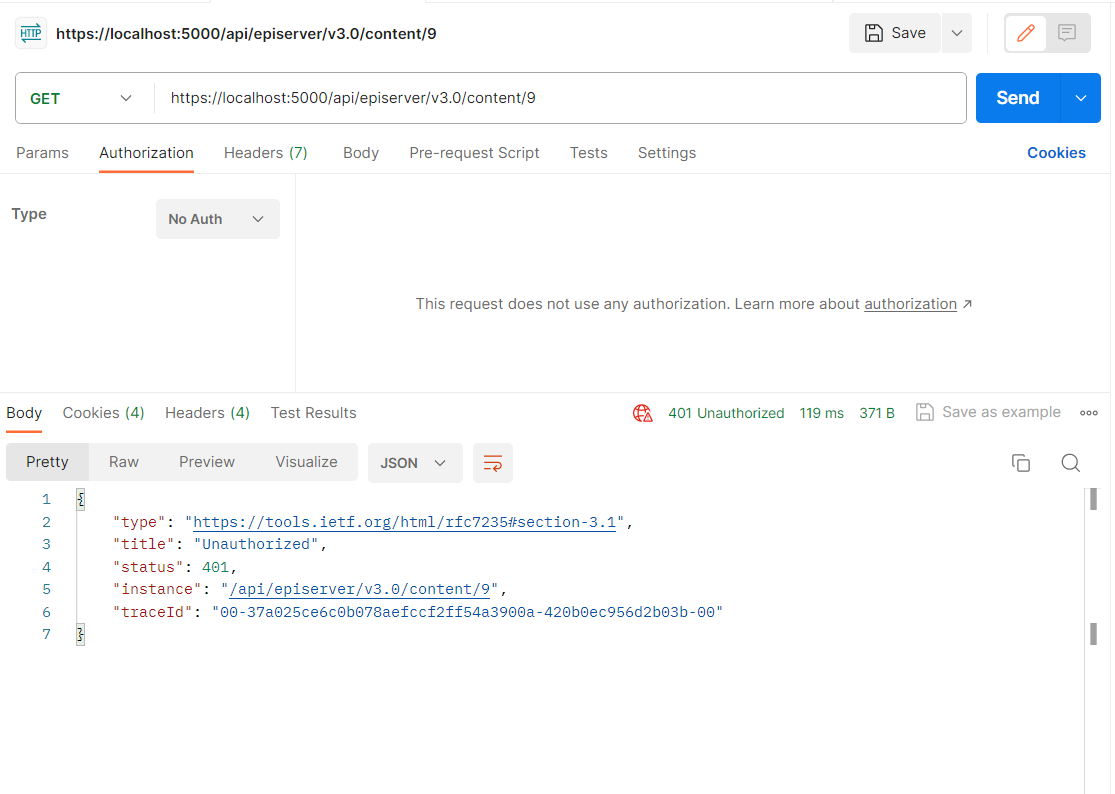

  3. This page has ID = 9 so we will send a request to get this content in Postman but with no authentication first. It should return a 401 Unauthorized error as this content will not be visible for Everyone Query: https://localhost:5000/api/episerver/v3.0/content/9

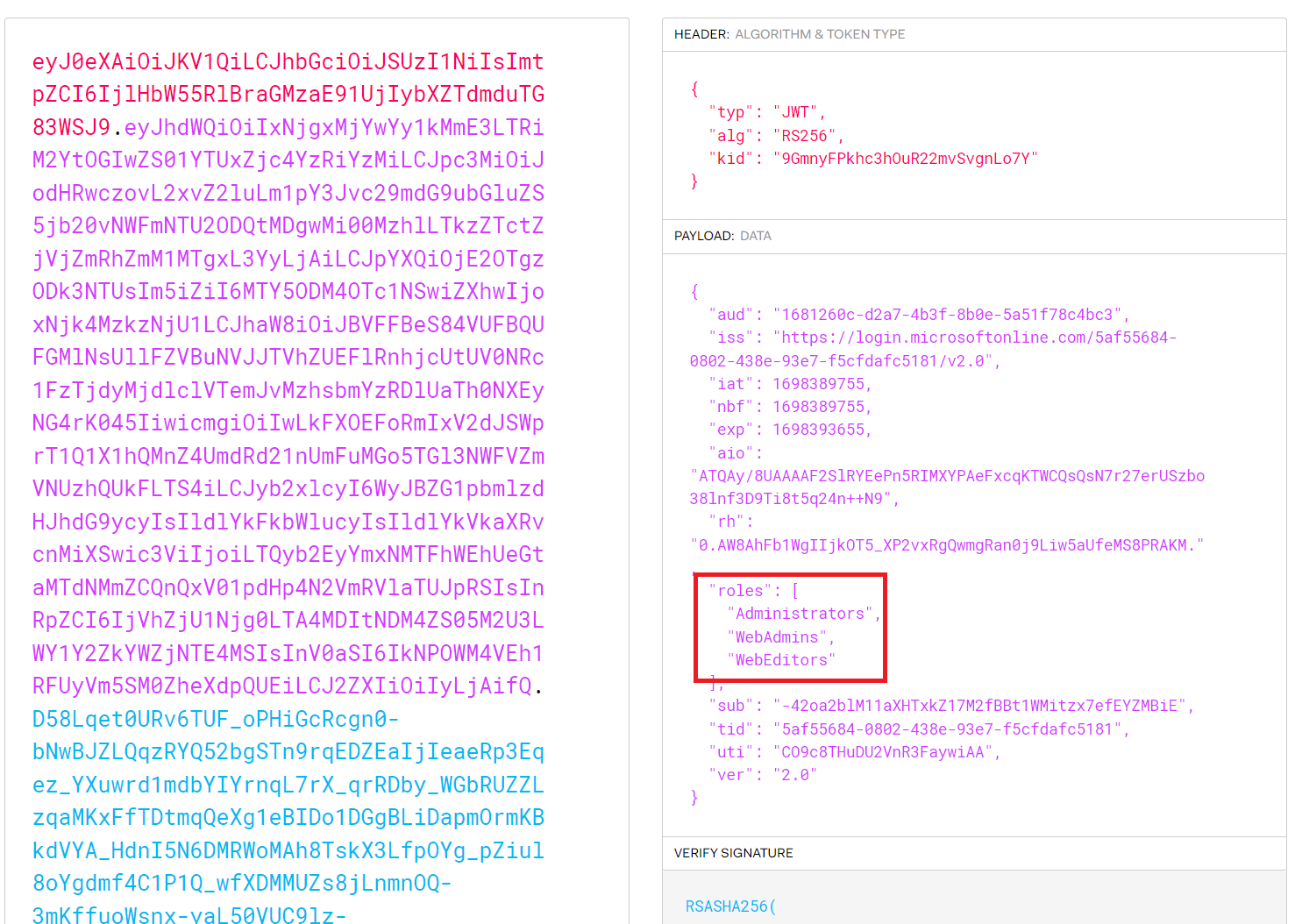

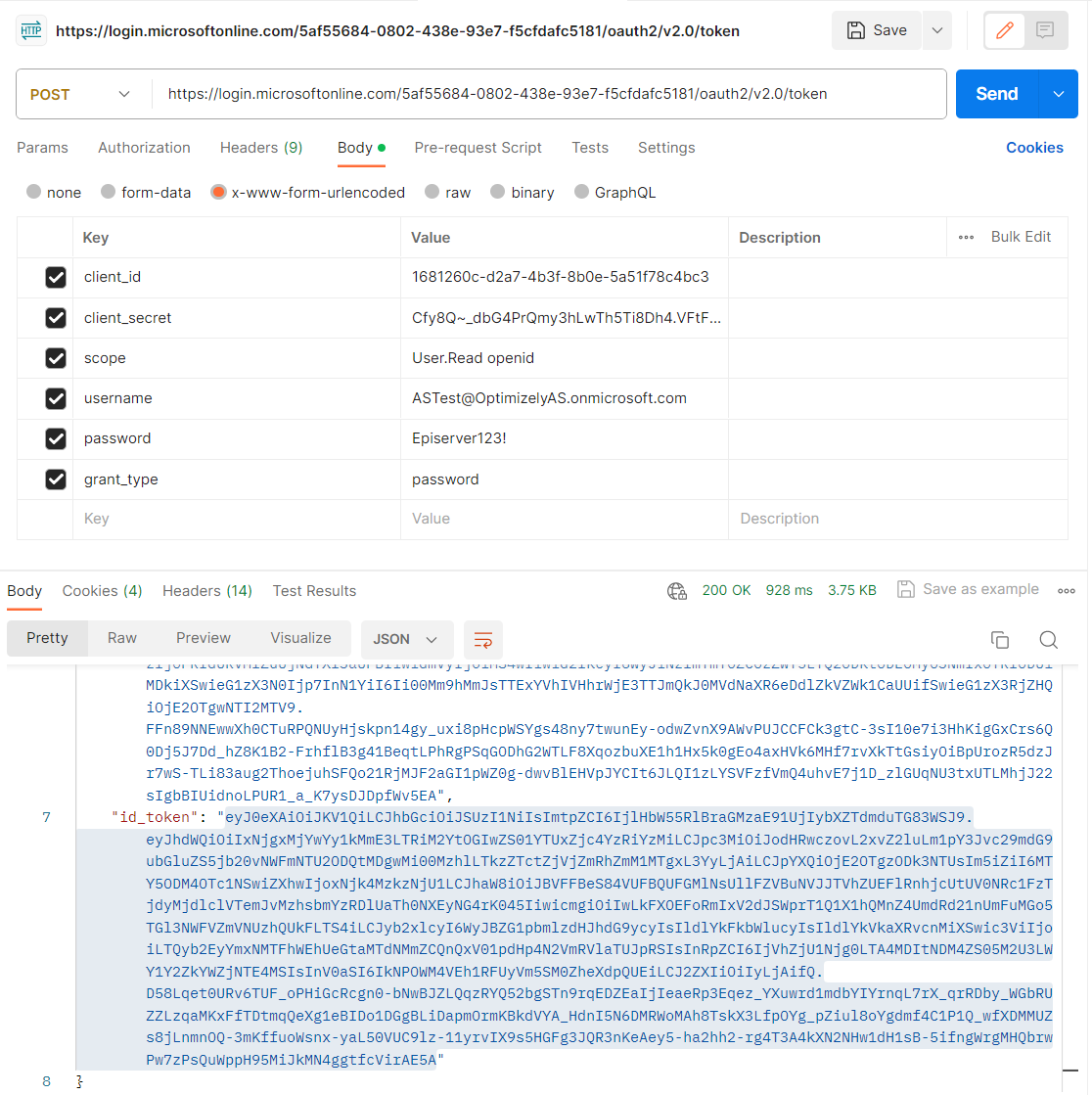

  4. In this example, we will get the JWT to communicate with CD using the URL: https://login.microsoftonline.com/{TENNANTID}/oauth2/v2.0/token For more information: https://learn.microsoft.com/en-us/entra/identity-platform/v2-oauth-ropc#authorization-request In this case, we will use the id_token to authenticate. Decode the token we can see that has 3 roles



  5. Try to get the content again with the Bearer token and the content should return now
