Install Windows Integration Service

  • Updated

This step by step guide for installing the Windows Integration Service (WIS) assumes that you already have the SDK downloaded. To start, you will need the CommerceIntegrationServiceSetup.msi file which can be found in the \WindowsIntegrationService\x64 folder (or the \WindowsIntegrationService\x86 folder for the 32-bit version) of the SDK.

If you are installing the WIS on Optimizely Configured Commerce 4.5.2 or later, you need the .Net framework for 4.8 or above. If you try installing the WIS with a previous .Net framework version, the WIS will not start up.

Override Windows Defender SmartScreen

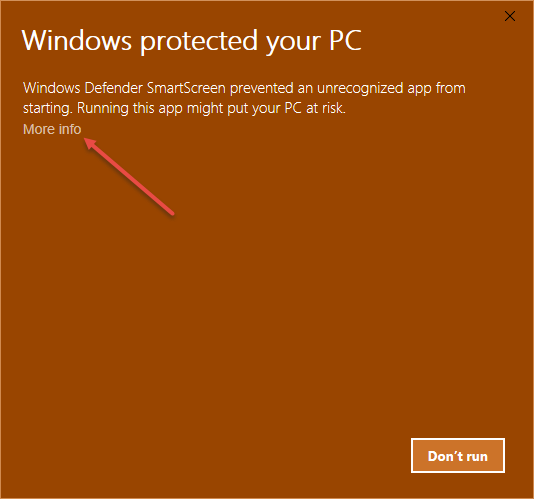

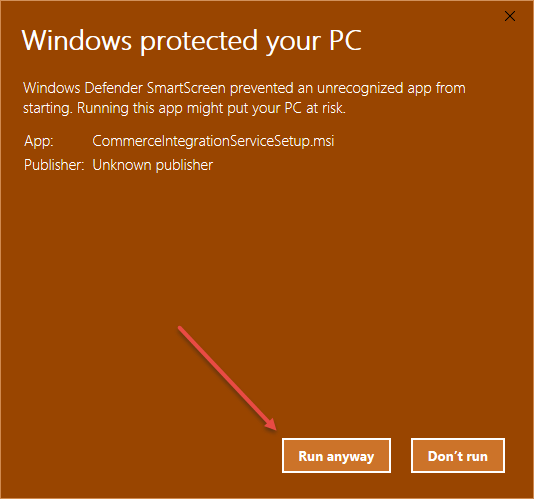

If you are running Windows Defender SmartScreen, you may need to override the security warning by selecting Show More and then selecting Run Anyway.

Install the WIS

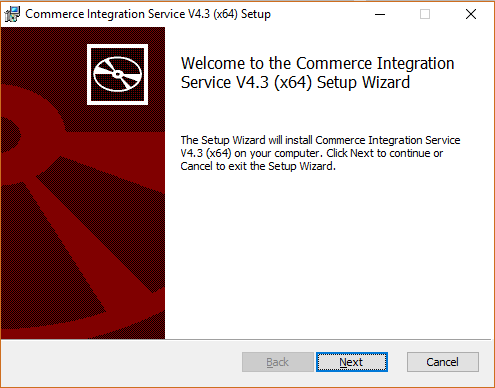

  1. Double click to open the CommerceIntegrationServiceSetup.msi and click the Next button.

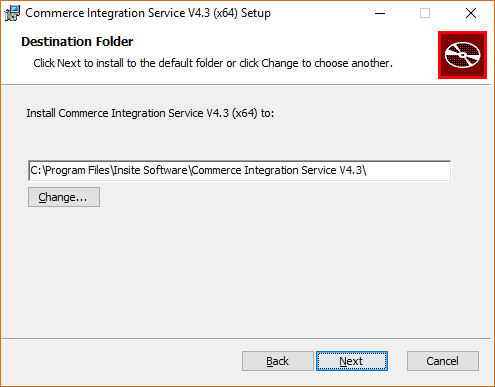

  2. Choose the file path to install the integration service. We recommend using the default path.

    Prior to installing the Integration Service on the default C: location, review the amount of available disk space. If the disk space is limited, choose a new location. Low disk space can possibly bring down your server due to large log.tx files and their respective backups.

  3. Click Next .

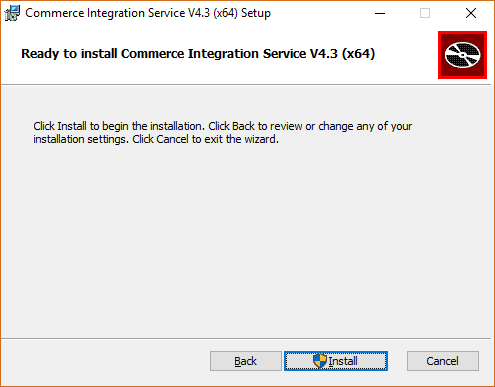

  4. Click Install.

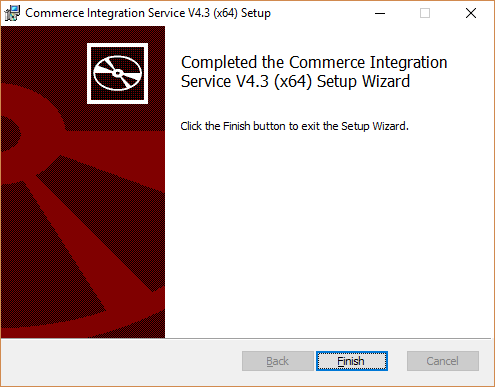

  5. After the installation has completed, click Finish.

Starting the WIS

Prior to starting the Integration Service, a connection must be configured. See the Configuring the WIS article.

To start the Integration Service, follow the steps below:

  1. Click Start.
  2. Click Run. (If you do not see the run command in your start menu, you can search for it.)

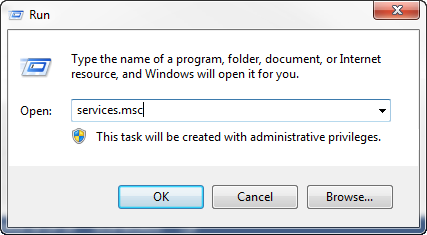

  3. Once Run has opened, enter services.msc and click OK.

    Run window

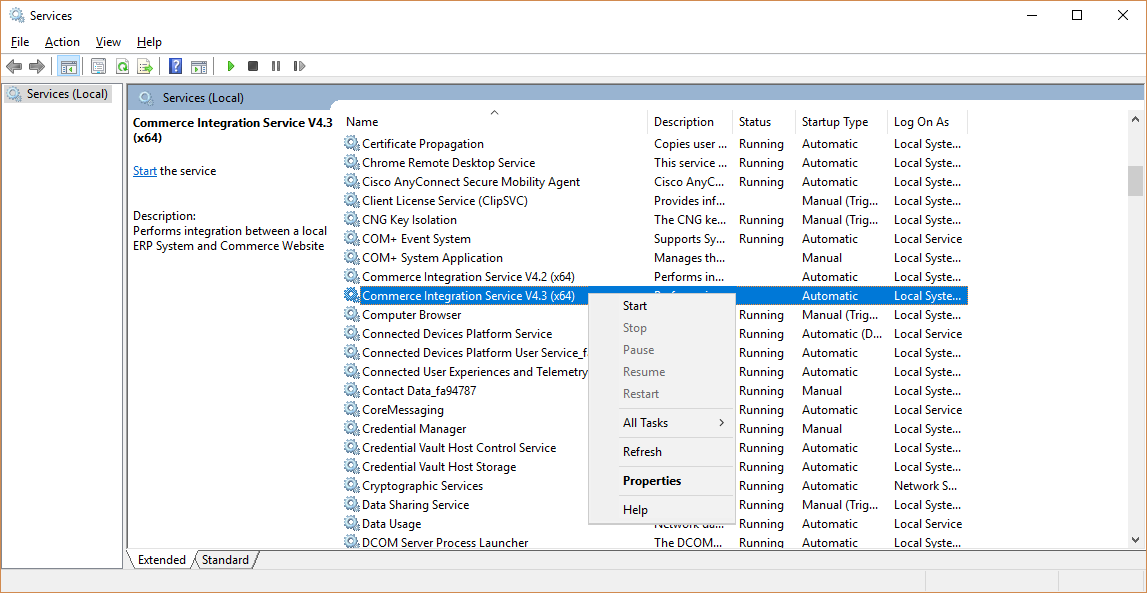

  4. Locate Commerce Integration Service 4.6 from the list and right click it.

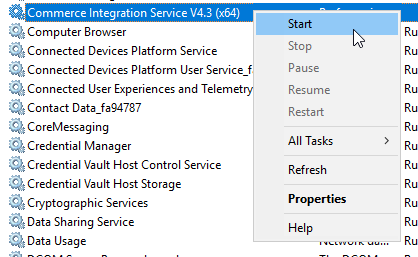

  5. Select Start from the menu.

Once these steps have been completed, the service should show that it is running. You can now go to the folder where you installed the WIS and review the logging in the logfile.txt to address any errors. If connection information is not set up correctly, this logfile.txt will alert you of problems encountered.

For more information on configuring WIS, refer to the this article: Configure the Windows integration service WIS
