Pardot connector (CMS 12)

  • Updated
The Optimizely Digital Experience Platform (DXP) contains many features to support you in your daily work. Depending on how your solution is set up, some features described in this documentation may not be available.

The Pardot® connector add-on automatically exports form data from your website to your Pardot account database by mapping Optimizely form fields to Pardot database fields. For information about other database connector add-ons, see Marketing Automation.

In 2020, Pardot added a more modern, consistent, and secure method to authenticate the Pardot API. The newly supported authentication method leverages the familiar Salesforce OAuth flows using your Salesforce users, no longer requiring a one-off Pardot-only user.

Set up Optimizely forms with Pardot

The Forms Marketing Automation Integration (MAI) connector lets you connect Optimizely form fields to a Pardot database. See also: Marketing Automation.

A developer must install the Forms Marketing Automation connector and the Pardot connector.
  1. In the app selector, select Addons > Marketing Automation.
  2. Click Create. The Add connector view displays.

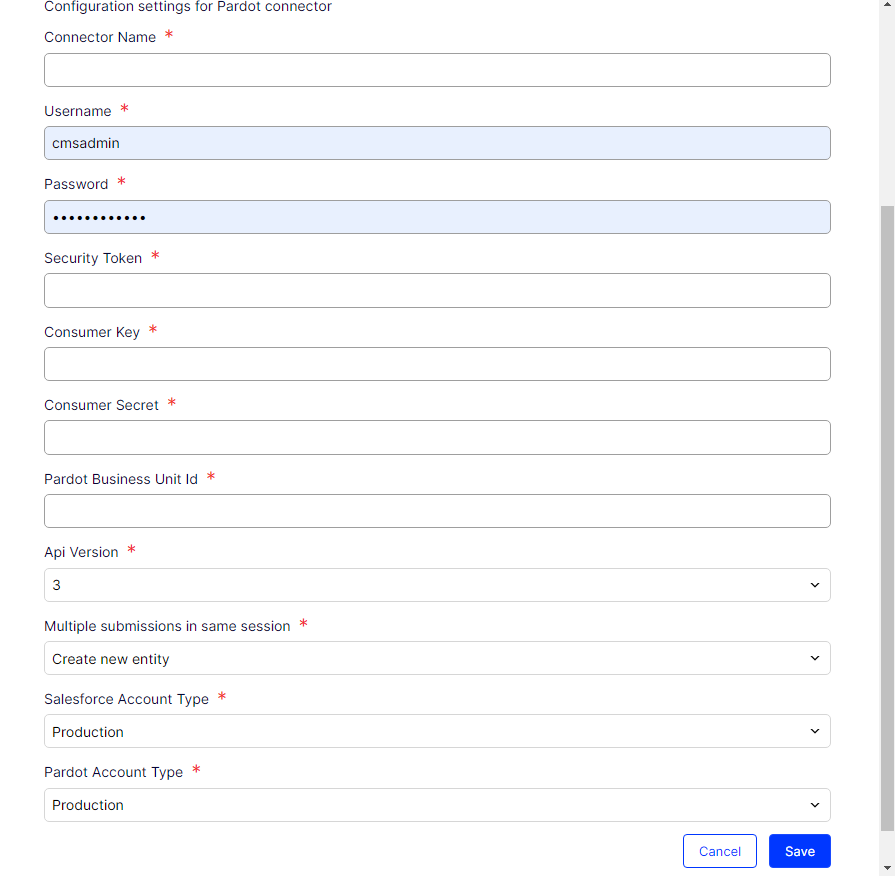

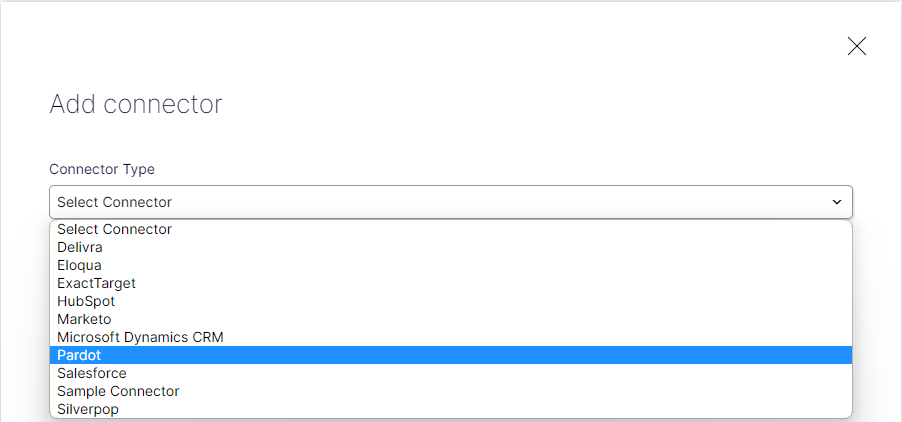

  3. Select Pardot from the list of the available connectors. The Pardot configuration settings screen displays. Specify the following information.
    After you upgrade to Pardot connector version 6, delete the older configurations from the Admin view (click Remove) and save new credentials. Older configurations will no longer work.


    • Connector Name – Enter a name for the connector.
    • Email – Enter the user name of the Salesforce administrator.
    • Password – Enter a password.
    • Security Token – Enter the security token associated with your Salesforce administrator.
    • Consumer Key – Associated with your Salesforce Connected App. See Set up a connected app (a section in a Salesforce blog post called Setting Up Salesforce OAuth for Pardot API Authentication).
    • Consumer Secret – Associated with your Salesforce Connected App. See Set up a connected app (a section in a Salesforce blog post called Setting Up Salesforce OAuth for Pardot API Authentication).
    • Pardot Business Unit ID – Enter the Pardot business unit you want; each Salesforce organization can support more than one Pardot business unit.
    • Api Version – Select 3 or 4 (default is 4). To determine which API version your Pardot organization supports, see What is Version 4?
    • Multiple submissions in the same session – Select Create new entity or Update previously created entity.
    • Salesforce Account Type – Select Production or Sandbox.
    • Pardot Account Type – Select Production or Demo.

    You can have multiple instances of the same connector. For example, if you have marketing teams in separate regions, you can have more than one Pardot connector such as Pardot - Europe, Pardot - US, and Pardot - APAC.

  4. Click Save.
  5. Create a form on a page.
  6. Click All Properties on the form.
  7. Open the Mappings tab.
  8. Select the Prospect database to which you map the form fields from the MA System Database drop-down field.

    Image: Pardot connector mapping

  9. Click Publish.
  10. On the form, select Edit from a form field's context menu.
  11. Open the Extra field mappings tab. The database option that you selected earlier displays.
  12. Enable the database option and open the associated drop-down list to see the available fields. For example, if your form has a Text field that was configured to capture an email address:
    1. Edit the email text field.
    2. Select the Extra field mappings tab.
    3. Select email from the drop-down list to map the Pardot database field to the Email field on the form.

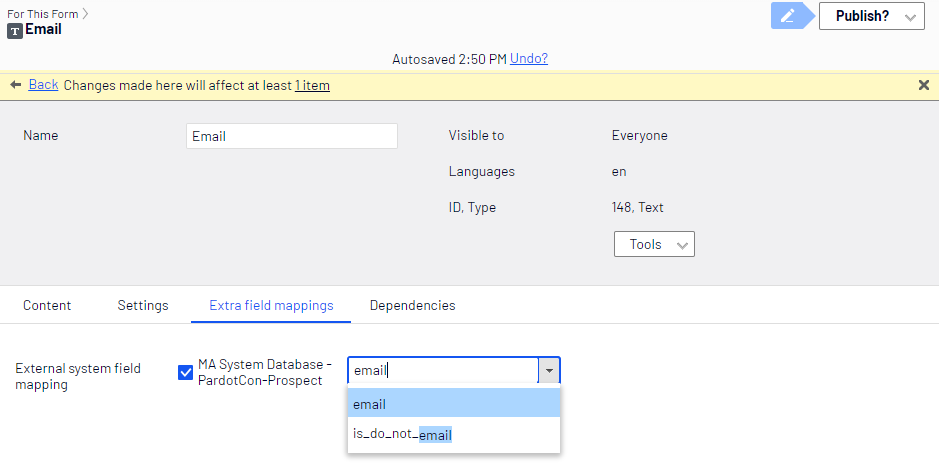

    Image: Mapping a Pardot database field to a form field

  13. Repeat steps 10 through 12 for as many fields as you want to map.
  14. Click Publish.

To test the mapping, go to your form on a published page, fill in and submit the form, and then go to your Pardot provider to verify that the user is added to the Pardot database.

Retrieve contact data

When a visitor submits the form, the data is sent to the Pardot database. To see who submitted the form, go to Pardot > Prospect > Prospect List and select the contact list.

Personalize the form using a block

You can personalize a form to show only to a selected group. For information about creating a visitor group and displaying information based on a visitor group, see Audiences.

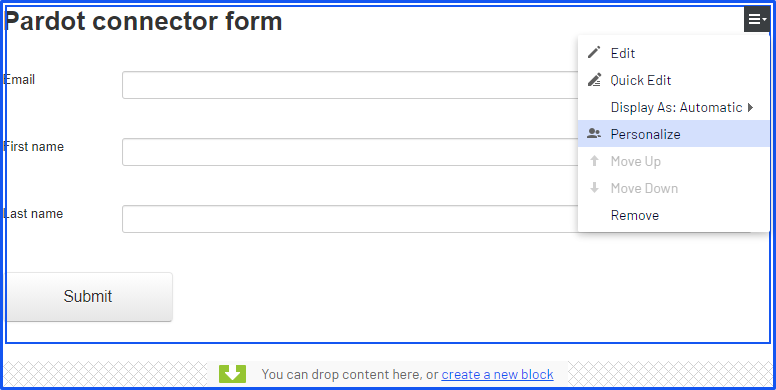

  1. From the context menu on the form on the page, select Personalize. The Large content area dialog box displays.

    Image: Personalize Pardot contact

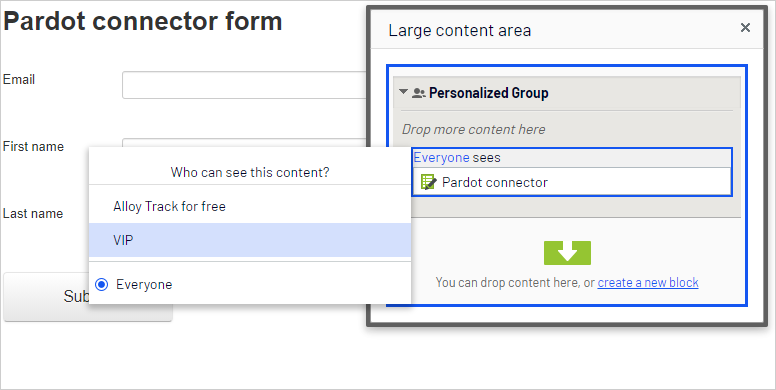

  2. Click Everyone and select a visitor group from the list. The following image shows personalizing the form to show only for people in the VIP visitor group.

    Image: Personalize Pardot contact

To create a visitor group for a Pardot form, see Create a visitor group for an MAI connector form.
