Create beelines from a path analysis

  • Updated

Beelines are new ad hoc data analyses that fork off from a point in the result of an exploration. The context of the forking point is propagated to the new analysis, where the user can continue further analysis. When you create a beeline (from the original or a beeline tile), a new one is created at the bottom, and the page scrolls automatically.

You can create the following beelines from a path analysis:

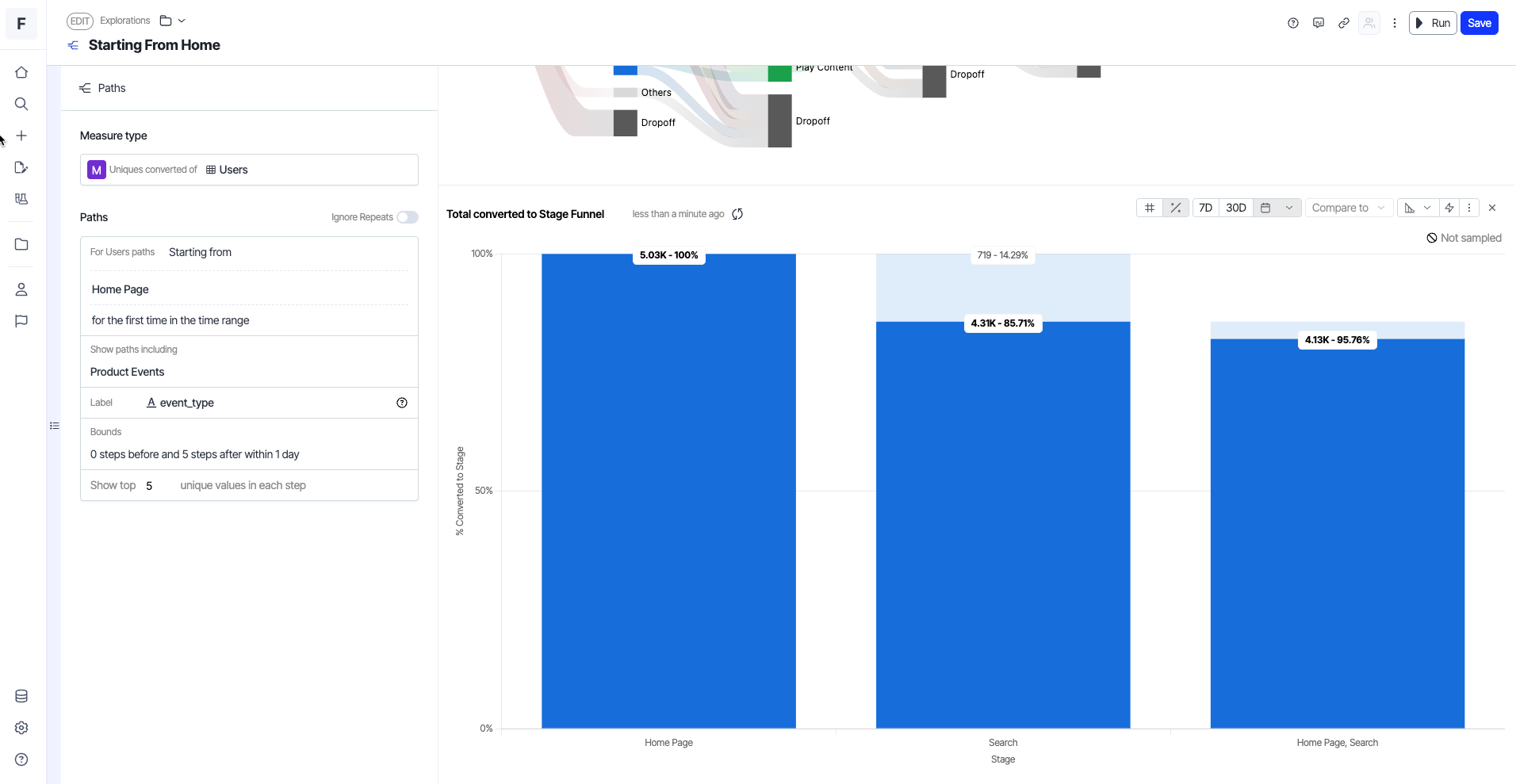

Show funnel from selected nodes

This beeline creates a funnel using the nodes you select from your path analysis.

  1. Open a path analysis of your choice.

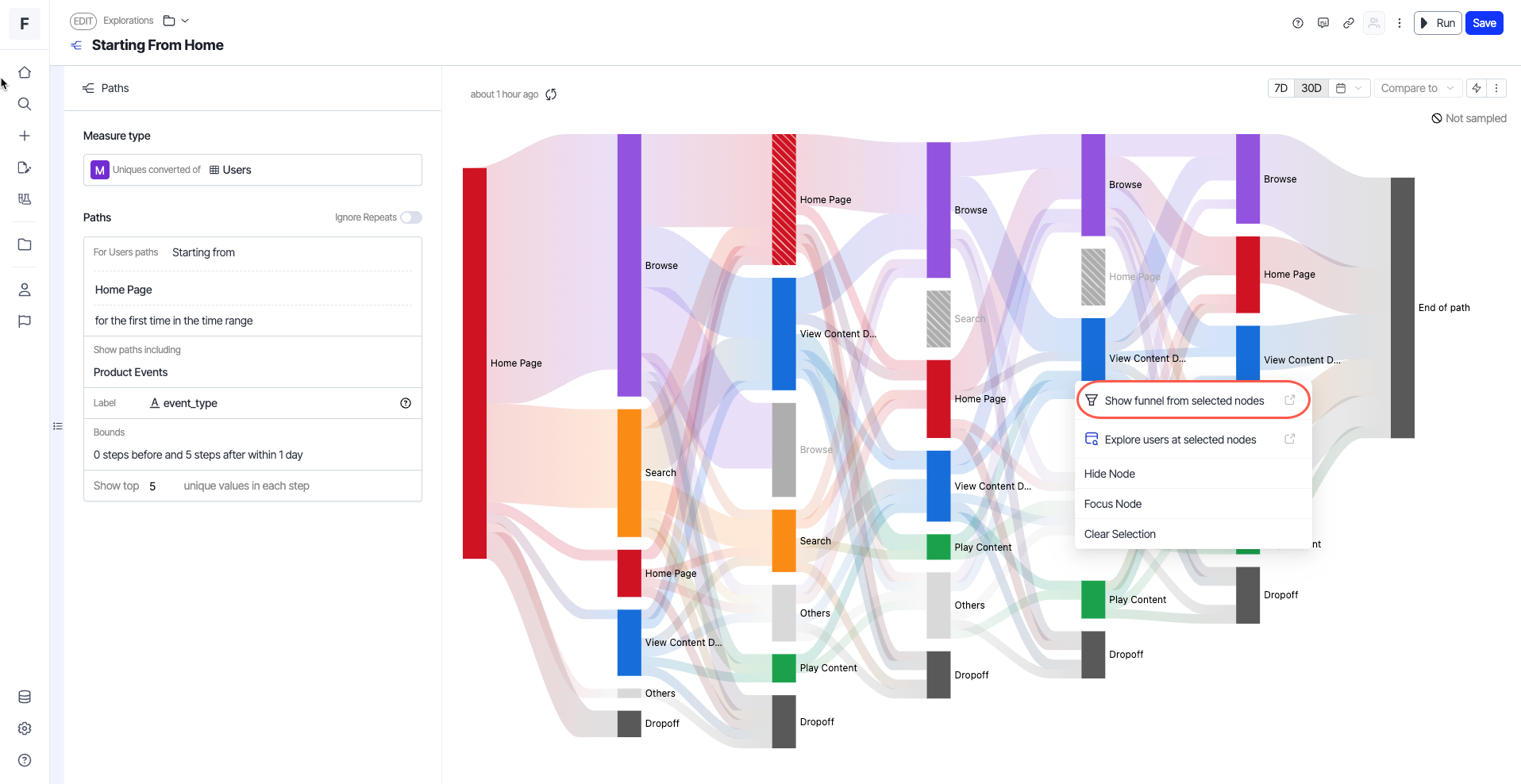

  2. Select the nodes for which you want to create a funnel, right-click any node, and choose Show funnel from selected nodes.


  3. Use the Open in Explorer option to further slice and dice this exploration, if required.


Explore users at selected nodes

You can also go from a path analysis to a visual exploration.

  1. Open a path analysis of your choice.

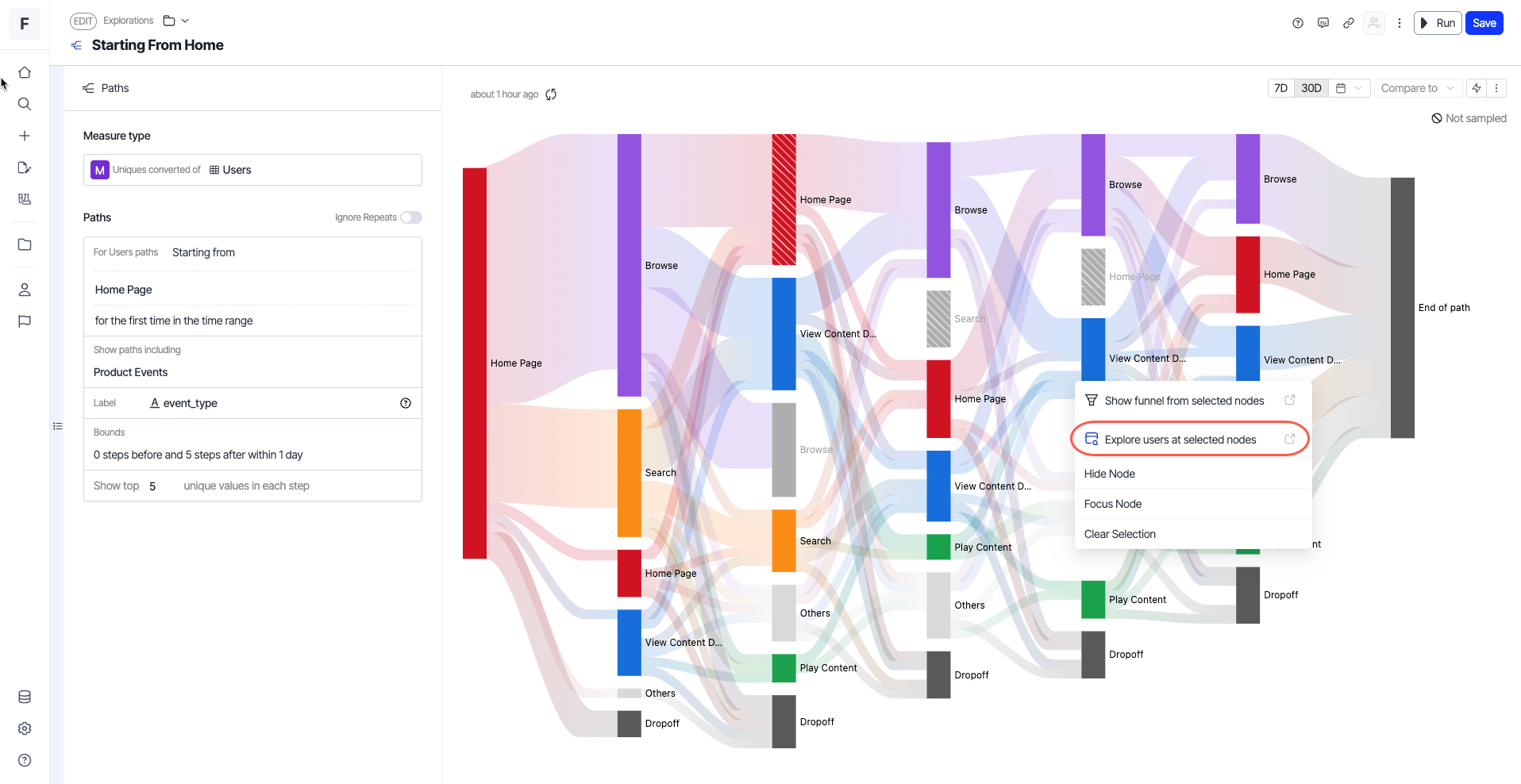

  2. Right-click any node and choose Explore users at selected nodes

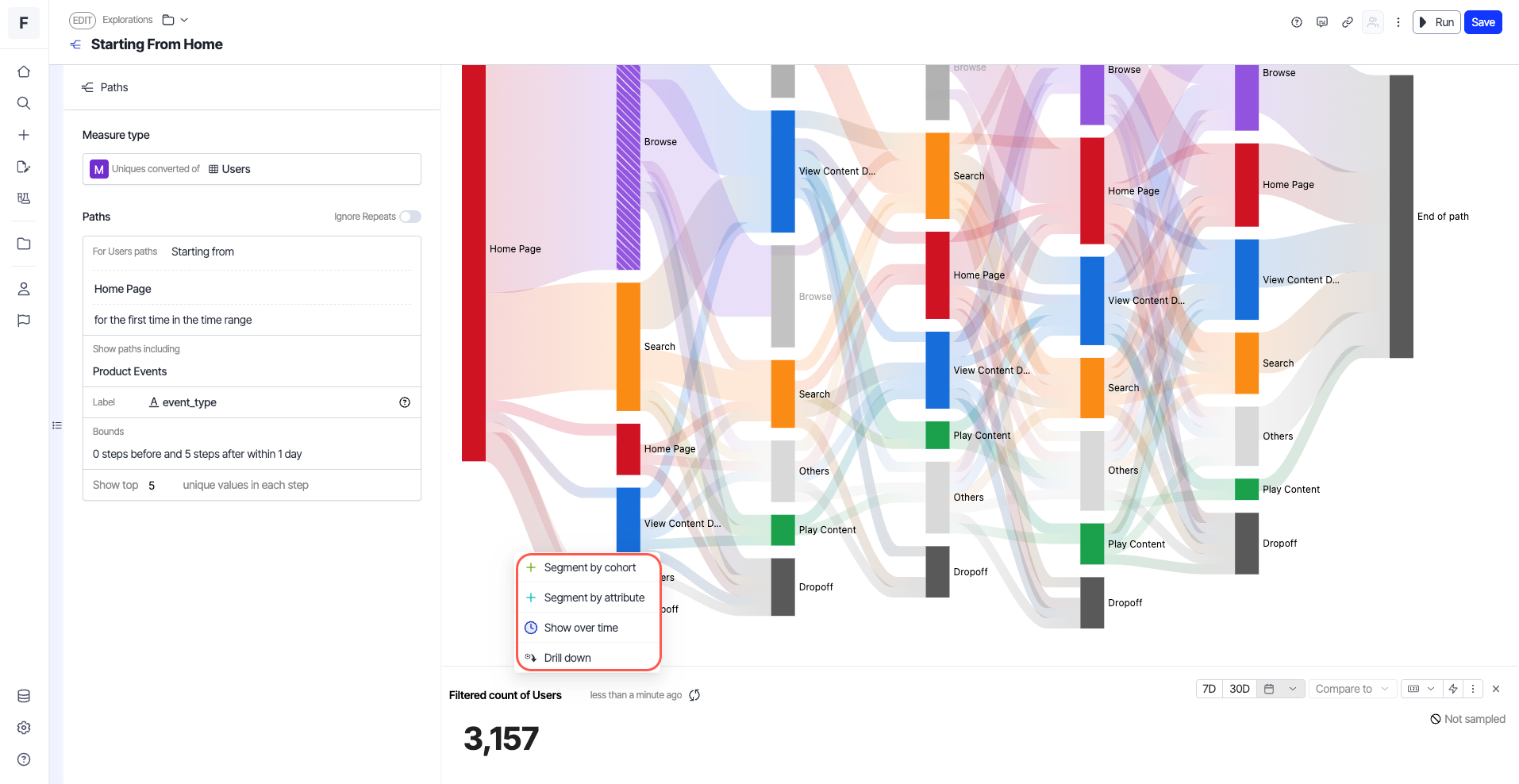

  3. Right-click and choose one of the following options to slice further and dice this exploration, if required: Drill-down, Segment by cohort, Segment by attribute, and Show over time.


Other options

When you right-click a node in a path analysis, options such as Focus node, Hide node, and Clear selection are displayed.

  • Focus node – Focus on one or a few selected nodes.
  • Hide node – Hide the selected node.
  • Clear selection – Clear any selection you made.
